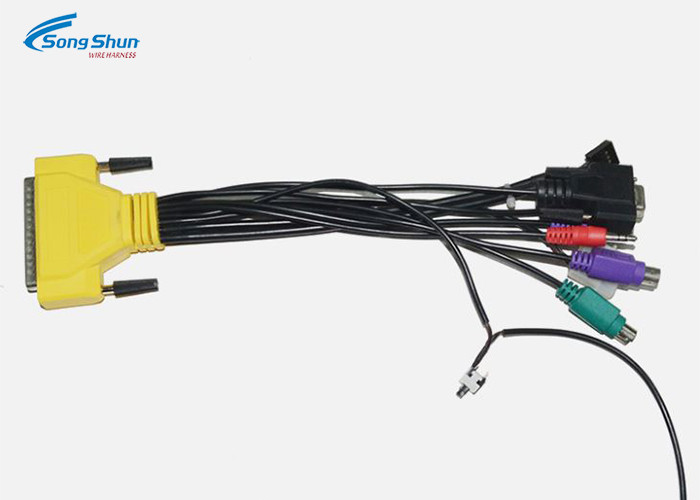

Custom VGA 25Pin to D-sub 9Pin Video Cable 3.5mm DC Cable Dupont
2.54mm cable
Features :Double-shield to provide the maximum immunity to
environmental EMI and RFI.
Fully support HDTV video and RGB high resolution standards.
Integrated ferrite on HD15 cable end for enhanced system
electromagnetic compatibility.
Quintuple coax connector for standard high definition 75 Ohm
inputs.
Red, Green, Blue, Gray or White for Horizontal Sync and Black for
Vertical Sync.
Connectors: 5 BNC(RGBHV) male to D-sub HD-15 pin VGA male.
Perfect for HD High Definition Television HDTV Video Projectors
Workstation Laptop Computer Monitors Display Card And Other
Security & Surveillance Equipment
Description
Premium high-end RGB video signal breakout cable for all
high-frequency displays like projectors, studio monitor,
high-performance RGB monitor and HDTV set.
This RGB adapter cable allows direct conversion of a 5 BNC, RGBHV
cable to VGA HD-15 pin connector for HDTV, video projector
applications. True 75 ohm connectors and cable for accurate video
and sync signal transfers.
It will also work for the 3-BNC type and the 4-BNC type. Heavy duty
shielding and "first class" quality all the way. Cable is 6 foot
long and will handle red, green, blue, vertical sync, and
horizontal sync.
| Cable&Wire : | 24AWG / customized |
| Conductor Size : | 11/0.16 / customized |
| Diameter : | 5.0/4.0mm |
| Jacket : | PVC |
| Operating Temperature : | -20°C to +105°C |
| Connector1 : | D-sub 9Pin Male 3.5mm Stereo Plug |
| Connector2 : | VGA 25Pin Male Plug |
| Application : | Used for for Outdoor Advertising Player , Set-up box , Laptop ,
Projector ,
HDTV , Advertsiing Dispalyer . |
| Length : | 12Inch 300mm/customized lengh |
| Environment : | All Materials are RoHS Compliant |
| Standard : | Under Standard IPC/WHMA-A-620/TS16949. |
| Wire Standard : | UL, VDE,CSA,TUV. |
| Quality : | 100% Electrical Tests Before Shipping |
We can produce series of wire harness
1. Home appliance wire harness
2. Fuse wire ,game machine wire harness
3. Power,LVDs,Flat RCA,USB cable harness
4. Control and panel wiring cable assemblies
5. Medical equipment cable and harness
6. Welding Equipment
7. Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
8. Electrical cable and wire harness
9. Audio,Video,Radio cable and iso wire harness
10. Industrial wire cable harness
Why choose us?
1. We have good long-term business cooperation relationship with
many famous connector brands, such as Molex, Tyco,JST,HRS, JAE,
AMP, Yeonho, TYU, Aces which makes it Cost-effective and faster
delivery.
2. We have various kinds of wires to choose from, UL PVC
single-core wire, silicone wire, teflon wire, Halogen free wire,
multi-core cable, flat cable etc. All of them are RoHS, Reach, UL
certified to meet the needs of export.
3. Our Product prototyping services.
How to order:
1. You send us the order.
2. We send you corresponding Proforma invoice.
3. You can pay to our HK company account or paypal account or
western union account and send us TT copy.
4. We make drawing and you confirm our drawing.
5. We make you sample to confirm ( if necessary).
6. We start mass production.
7. You advise shipping instruction and pay freight ( if you would
like the freight to be prepaid).
8. We provide AWB tracking number.
9. You receive cargo and give us feedback ( if any).
