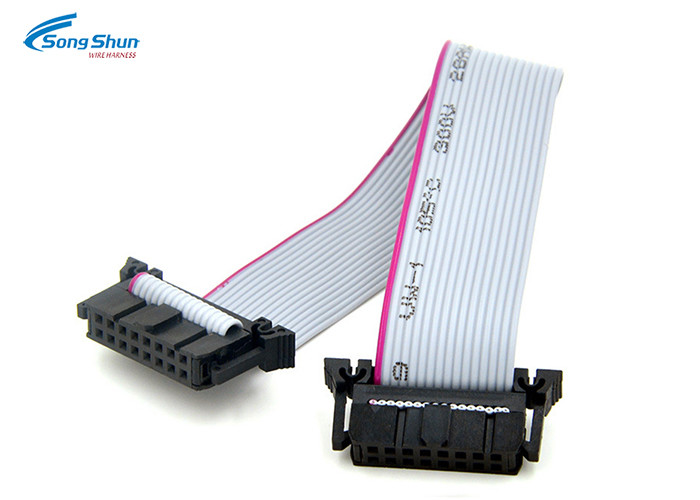

Custom grey flat ribbon FC wire harness IDC 2.54mm Connector FFC
cable
Flat Cable
| UL FLAT RIBBON WIRE | CABLE PHYSICAL PROPERTISE: |
| UL Style:2651 | After seven days air oven at 136℃ |
| Rated temperature:105℃ | Average tensile strength:1500Ibs/inch2 |
| Rated voltage:300Volts | Percent of original:70% at least |
| Passess VW-1 vertical flame test | Average elongation:200% |
| Percent of original:65% at least |
| CONDUCTOR | |
| AWG size:28AWG | ELECTRONIC CHARACTERISTICS |
| Nummber of strands in each conductor: | |
| 7/0.127mmTinned copper | Spark test:2500Volts |
| Lay of strands in each conductor: 0.005 inch at least | Dielectric strength test:Minimum2000Volts in 1 |
| minute | |
| Cross section area:156 Circular mil | Conductor resistance:Maximum237Ω/KM |
| Insulation resistance:Maximum100M |
| INSULATION | Capacity:40pF/M |
| Material of insulation:Polyvinl chloride(PVC)Gray | Inductance:1.45µH/M |
| Insulation thickness average:9mil | Impadance:100Ω |
| Minimum insulation thickness:7mil | Propagation delay time:4.2ns/m |
IDC Ribbon cables with IDC connectors
Features: 1.double rows, 4pin-50pin pin female to 4pin-50pin female
header with both end, compatible with 2.54mm 2.0mm 1.27mm 1.0mm
spacing pin headers,IDC connector can be used TE Molex FCI Hirose or equivalent.
2.Idc flat Ribbon cable, used for most Atmel AVR jtag debuggers,
in-system programmers, isp download, etc.
Allows to extend standard IDC 16Pin Cable and can also be used for
additional applications, such as hard drive, motherboard, CD, DVC,
HDD, CDRW and DVCRW.
Hard disk idc flat ribbon cable; LED display idc flat ribbon cable;
Computer idc flat ribbon cable, IPC idc flat ribbon cable, etc.
28 awg flat ribbon cable spacing: 0.635mm 1.0mm 1.27mm 2.0mm 2.54mm
Specifications:UL2678 UL2651 32AWG 30AWG 28AWG 26AWG 24AWG
Copper structure material: the first after the first twist plated
plated stranded copper clad aluminum magnesium wire 7 strands of
copper wire --12 shares
Copper wire Conductor: General 7 / 0.08mm 7 / 0.09mm 7 / 0.1mm 7 /
0.12mm 7 / 0.16mm 7 / 0.2mm(7 of 7-strand copper wire)
Jacket color: gray with conventional printing with red edge, and
another color, black and yellow, to be ordered!
Packing: 250ft: 76.5m / volume 500ft: 153m / roll pans customized
export
Conductor diameter: 0.12 ± 0.005mm
Conductor Elongation: 18% ↑
Conductor cross-sectional area: 0.36mm2
Conductor twisted away from 10.7mm ↓
The average thickness of the insulator minimum 0.10mm 0.23mm
Wire thickness 0.9 ± 0.05mm
Insulator elongation 100.00%
Insulator tensile strength 1.066Kg / mm2
Spark test 3.0KV / 0.15SPC ↑
Withstand Voltage: 2KV 10mA /
Conductor resistance ≤237 ohms / RM ↓
Insulation resistance ≥100m ohm / RM ↑
Capacitance 40PF / M
Impedance of 100 ohms
Time delay 4
Operating temperature: -40 °C ~ + 105 °C
Insulation Jacket: Environmental PVC 45P (RoHS) 8058 Grey
| Cable&Wire : | UL2651 flat cable / Custom |
| Conductor Size : | 28AWG(7/0.127) / Custom |
| Cable Pitch Range : | 1.27mm |
| Diameter : | 0.9 mm |
| Jacket : | Colour PVC |
| Operating Temperature : | -40°C to +105°C |
| Connector 1 : | FCI 2.54mm IDC 16Pin Connector |
| Connector 2 : | FCI 2.54mm IDC 16Pin Connector |
| Length : | 0. 45 meter / Custom |
| Environment : | All Materials are RoHS Compliant |
| Standard : | Under Standard IPC/WHMA-A-620 |
| Wire Standard : | UL, VDE,CSA,TUV. |
| Quality : | 100% Electrical Tests Before Shipping |
Why choose us?
1. We have good long-term business cooperation relationship with
many famous connector brands, such as Molex, Tyco,JST,HRS, JAE,
AMP, Yeonho, TYU, Aces which makes it Cost-effective and faster
delivery.
2. We have various kinds of wires to choose from, UL PVC
single-core wire, silicone wire, teflon wire, Halogen free wire,
multi-core cable, flat cable etc. All of them are RoHS, Reach, UL
certified to meet the needs of export.
3. Our Product prototyping services.
How to order:
1. You send us the order.
2. We send you corresponding Proforma invoice.
3. You can pay to our HK company account or paypal account or
western union account and send us TT copy.
4. We make drawing and you confirm our drawing.
5. We make you sample to confirm ( if necessary).
6. We start mass production.
7. You advise shipping instruction and pay freight ( if you would
like the freight to be prepaid).
8. We provide AWB tracking number.
9. You receive cargo and give us feedback ( if any).
