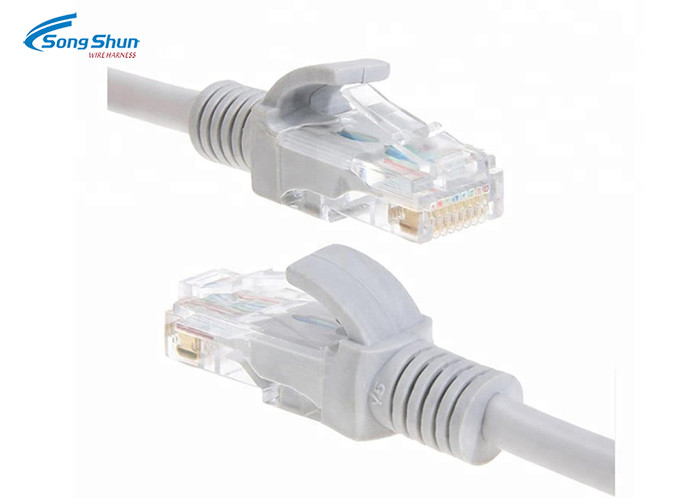

Custom Ethernet Cable RJ45 UTP Cat 6 Network LAN Cable for Router
Computer
Application of Cat 5 patch cable:
Ideal for use with 10 BASE-T, 100 BASE-Tx.100 BASE-T4 and 1000
BASE-T networks. it works best for your desktop, laptop, router,
modem, switch, hub, ADSL etc
Feature of Cat 5 patch cable:
1. Quality Control
Each cable goes through rigorous test to ensure a secure wired
internet connection with exceptional speed and reliability.all
cables with CE/RoHS/FCC certification
2. Performance
High performance Cat 5 ethernet patch cables are designed with
extremely well-matched components for outstanding uniform impedance
and very low return loss, providing lower crosstalk, and a higher
signal-to-noise ratio.
3. Configuration
Cat 5 ethernet patch cable taking and meet the TIA/EIA 568B
standard which stipulate the flexible multicore cables. and covered
by a 5mm PVC jacket with RJ45 connectors and 15U gold-plated Plug.
The molded strain relief boots help avoid snags that will damage
your cables. They are molded for flexibility and resist common wear
and tear.
4. Warranty
Songshun Cables are backed by a limited 1-year warranty should any
issue arise. For questions or concerns please contact us.
| FEATURES | Wiring Scheme |
TIA/EIA-568B.2-1;ISO/IEO 11801;
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor
installation | ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment
(1-2/3-6/4-5/7-8) |
| CORDAGE | |
Constructor: 8 cores, 7 strands, 28AWG, UTP
Cable Type:UTP Cat.5 Patch Cable
Wideth:6.0mm±0.2mm; Thickness:1.6±0.2mm Outer Jacket: PVC/LSZH Jacket | Pair Identification:Pair1= Blue/White Pair2= Orange/White Pair 3= Green/White Pair4= Brown/White |
| PLUG | |
Type:Unshielded RJ45 8P8C Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
IDC blades: phosphor bronze, gold plating over 100 μin of nickel in
contact area |
| MECHANICAL |
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire | Installation Temperature: 0°C to +75°C
Operating temperature: -20°C to +75°C
Minimum bend radius: 4 outer cable diameters |
| Boot Type: Any type of the above picture |
| Length:0.3m-30m or As per requested |
| Cable Color:Grey/Green/Blue/White/Black/Red/Yellow/Pink |
Package:polybag or Blister Package
|
Why choose us?
1. We have good long-term business cooperation relationship with
many famous connector brands, such as Molex, Tyco,JST,HRS, JAE,
AMP, Yeonho, TYU, Aces which makes it Cost-effective and faster
delivery.
2. We have various kinds of wires to choose from, UL PVC
single-core wire, silicone wire, teflon wire, Halogen free wire,
multi-core cable, flat cable etc. All of them are RoHS, Reach, UL
certified to meet the needs of export.
3. Our Product prototyping services.
How to order:
1. You send us the order.
2. We send you corresponding Proforma invoice.
3. You can pay to our HK company account or paypal account or
western union account and send us TT copy.
4. We make drawing and you confirm our drawing.
5. We make you sample to confirm ( if necessary).
6. We start mass production.
7. You advise shipping instruction and pay freight ( if you would
like the freight to be prepaid).
8. We provide AWB tracking number.
9. You receive cargo and give us feedback ( if any).
