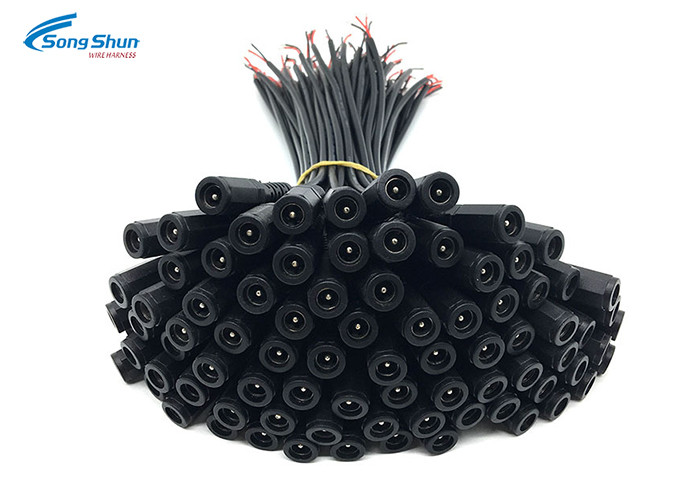

DC power cord 24AWG UL2464 Black Cable With DC Power Jack 5.5 x
2.1mm Male Plug.
Feature of DC Power cable:
1. Cable & Wire Quality Control
Each cable goes through rigorous test to ensure a secure wired with
exceptional save and reliability.all cables with RoHS/UL/CSA/CE
certification
2. DC Power Jack Performance
Rated load: Rated Load 30V DC 0.5A.
Insulation resistance: Insulation Resistance ≥100MΩ.
Pressure resistance: Withstand Voltage 500V,AC/min.
Electrical life: Life 5000 times.
Temperature range: Temperature -20~+80℃.
Contact resistance: Contact Resistance ≤0.03mmΩ.
Pluggable force: Insertion and Extraction Force 3N~30N.
3. Processing standard
Cable taking and meet the UL CSA CE standard which stipulate the
flexible multicore cables. and covered by a PVC jacket with DC
Power Jack connectors. The molded strain relief boots help avoid
snags that will damage your cables. They are molded for flexibility
and resist common wear and tear..
4. Warranty
We supply wire harness and cable assemblies to international and
domestic manufacturers using IPC- A-620A industry standard,100%
Electrical Tests Before Shipping
5. Application of DC Power cable:
Remote control, communication products, home appliances, security
products, electronic toys, computer products, fitness equipment,
medical equipment, etc.
| Cable&Wire | UL2464 AWG 24 / Custom |
| Conductor Size | 24AWG(11/0.16) / Custom |
| Insulation | PVC Red/Balck |
| Jacket | Black PVC / Custom |
| Diameter | φ3.5mm |
| Operating Temperature | -20°C to +75°C |
| Connector 1 | DC Power Jack 2.1mm Female CONN |
| Connector 2 | Dc plug, open W/W/O SR, 3mm tinned |
| Length | 400 MM / Custom |
| Environment | All Materials are RoHS Compliant |
| Standard | Under Standard IPC/WHMA-A-620 |
| Wire Standard | UL, VDE,CSA,TUV. |
| Quality | 100% Electrical Tests Before Shipping |
| Application | Microwave oven, electric fan, electronic kitchen scale, electronic
body scale, car phone and telephone. |
Why choose us?
1. We have good long-term business cooperation relationship with
many famous connector brands, such as Molex, Tyco,JST,HRS, JAE,
AMP, Yeonho, TYU, Aces which makes it Cost-effective and faster
delivery.
2. We have various kinds of wires to choose from, UL PVC
single-core wire, silicone wire, teflon wire, Halogen free wire,
multi-core cable, flat cable etc. All of them are RoHS, Reach, UL
certified to meet the needs of export.
3. Our Product prototyping services.
How to order:
1. You send us the order.
2. We send you corresponding Proforma invoice.
3. You can pay to our HK company account or paypal account or
western union account and send us TT copy.
4. We make drawing and you confirm our drawing.
5. We make you sample to confirm ( if necessary).
6. We start mass production.
7. You advise shipping instruction and pay freight ( if you would
like the freight to be prepaid).
8. We provide AWB tracking number.
9. You receive cargo and give us feedback ( if any).
